Tornado 2 Orbital cleaner

GEA Breconcherry Tornado 2 orbital cleaner (radial and axial rotating target cleaner with 2 nozzles)

Extremely powerful, radially and axially rotating jet cleaner with 2 nozzles

  • liquid driven 360° low pressure orbital cleaner
  • strong radiation with high consumption values
  • FDA compliant & EX certified
  • acid, alkali and temperature resistant
  • compact dimensions
  • self-cleaning, hygienic, low-wear
  • validatable cleaning
  • function monitoring by Vericlean or SMW 100
  • for industrial usage

Technical Data

Technical Data Value
Max. cleaning diameter: 27 meters
Spray pattern: 360° orbital
Pressure range: 4 – 10 bar / 58-145 psi
Flow rate: 243 – 378 LPM (14.6 – 22.7 m³/h)
Insertion opening: min. Ø 100 / 220 mm
Preferred mounting position: arbitrary, preferably vertical
Weight: approx. 3.1 KG
Materials: Stainless Steel 316L (1.4404), C.PTFE, PTFE
Pipe connection: 1.5″ female thread BSP (NPT)
Optional Pipe Connections: 1.5″ cotter pin, DN40 cotter pin, DN50 cotter pin, 1.5″ Clamp
Nozzle characteristics: 2 x 11.0 mm nozzles
Certificates: 3.1, 2.2, ATEX, FDA Regulation (EC) No 1935/2004
Max. operating temperature: 95°C (203°F)
Max. ambient temperature: 140°C (284°F), 30 Min.
Operating recommendation: It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage.

blank

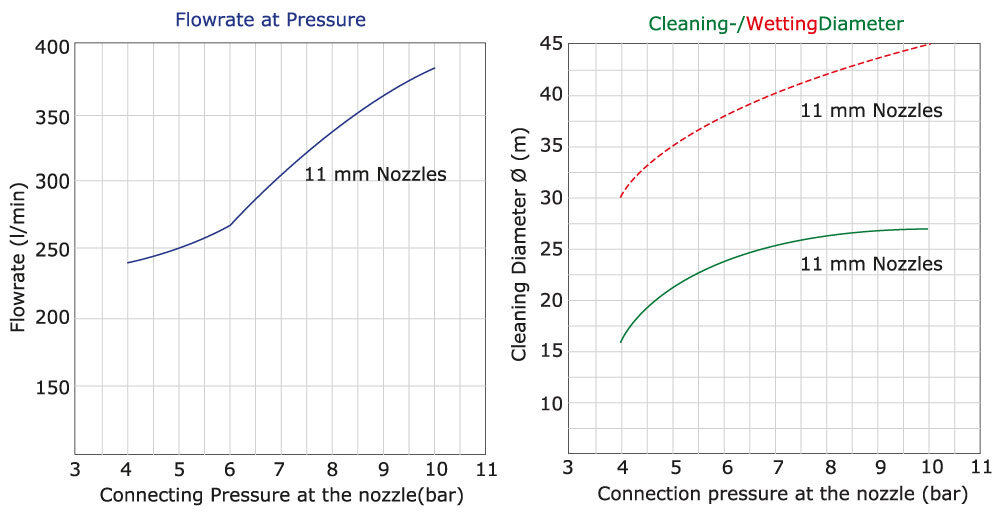

Optimal Operation

The pressure range for operating a Typhoon is 4 – 10 bar at the cleaning machine.
With a flow rate of 243 – 378 liters/minute, a cleaning diameter of 10 – 17 meters is achieved.

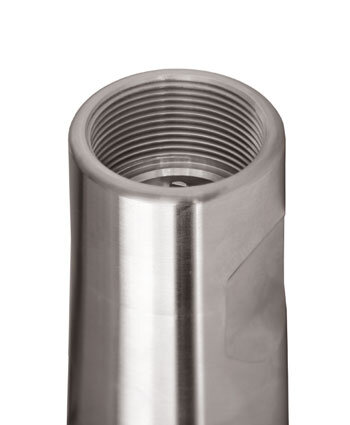

Threaded connection

Tornado 2 standard devices are equipped with a 1.5″ cylindrical internal thread BSP (British Standard PIPE according to DIN ISO 228). The device is optionally available with a 1.5″ conical internal thread NPT (National Pipe Taper, American pipe thread for self-sealing connections).

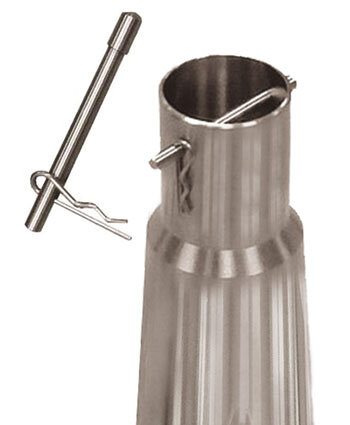

Cotter pin connection

The Tornado 2 orbital cleaner is optionally available with a 1.5″ cotter pin attachment. The cotter pin attachment ensures that the cleaning machine is attached without dead space. cotter pin versions have an approx. 15% higher flow rate.

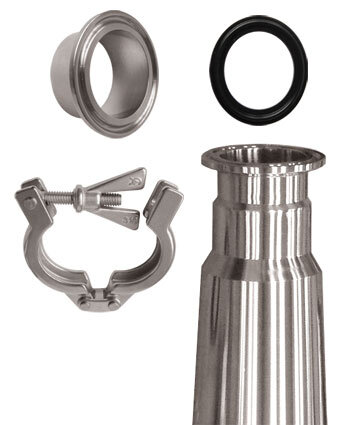

Clamp connection

The Tornado 2 is optionally available with a 1.5″ clamp connection. A clamp connection ensures the uncomplicated removal of the cleaning machine.

Tornado 2 with 1.5″ threaded connection

Connection Nozzles Type Product code Materials EX FDA Article number
1.5″ BSP 2 × 11.0 mm S Tornado2-AF2x11S-BSP 316L/C-PTFE ✔ ✔ 4660-4970-113
1.5″ BSP 2 × 11.0 mm S Tornado2-F2x11S-BSP 316L/PTFE ✔ 4660-4970-114
1.5″ NPT 2 × 11.0 mm S Tornado2-AF2x11S-NPT 316L/C-PTFE ✔ ✔ 4660-4970-115
1.5″ NPT 2 × 11.0 mm S Tornado2-F2x11S-NPT 316L/PTFE ✔ 4660-4970-116

Tornado 2 with 1.5″ cotter pin/PIN FIX connection

Connection Nozzles Type Product code Materials EX FDA Article number
1.5″ cotter pin/PIN FIX 2 × 11.0 mm S Tornado2-AF2x11S-150PF 316L/C-PTFE ✔ ✔ 4660-4970-117
1.5″ cotter pin/PIN FIX 2 × 11.0 mm S Tornado2-F2x11S-150PF 316L/PTFE ✔ 4660-4970-118

Cotter pin/PIN FIX versions have approx. 15% higher flow rates than the threaded versions.

S: version with self-cleaning nozzle.

Standard external surface: Ra ≤ 0.8 µm.

All versions are FDA compliant. The EX/ATEX version is only available with C-PTFE. 3.1 certificate for all versions.

Tornado-2 units with C-PTFE as bearing material have a longer service life.

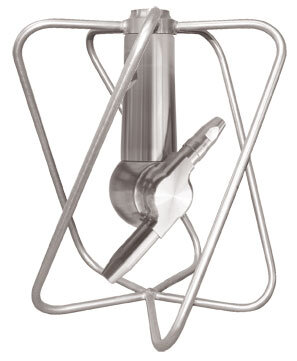

Protective cage (fixed)

protective cage as accessory for industrial cleaning systems
Materials: Stainless steel 1.4404 (316L), PTFE
Certificates: 3.1, 2.2
Device attachment: 1.5″ male BSP
Supply: Welding connection for 41 mm pipe or 1.5″ male BSP

Weld nipple

weld nipple as accessory for industrial cleaning systems
Materials: Stainless steel 1.4404 (316L)
Certificates: 3.1, 2.2
Device attachment: 1.5″ male BSP
Supply: Welding end

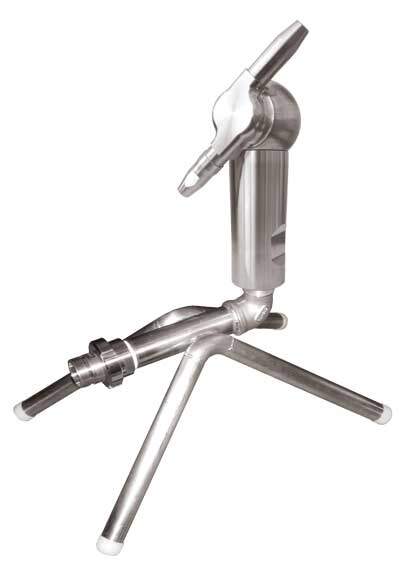

Stand

stand as accessory for industrial cleaning systems
Materials: Stainless steel 1.4404 (316L), PTFE
Certificates: 3.1, 2.2
Device attachment: 1.5″ male BSP
Supply: as required

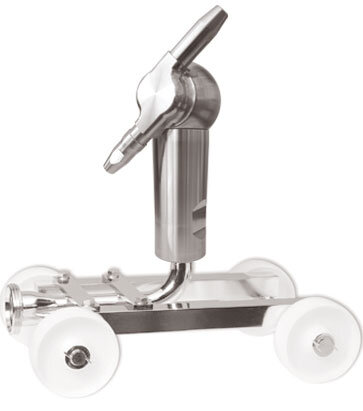

Tank cleaning wagon

tank cleaning wagon as accessory for industrial cleaning systems
Materials: Stainless steel 316L (1.4404), PP (PTFE)
Certificates: FDA, 3.1, 2.2
Device attachment: 1.5″ male BSP
Supply: DN50 Thread connection DIN 11851

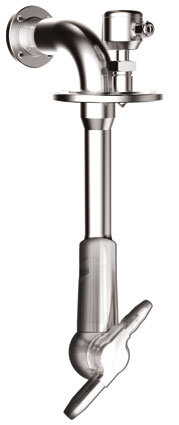

Installation lance

Installation lance as accessory for industrial cleaning systems
Materials: Stainless steel 1.4404 (316L), EPDM, FKM
Certificates: 3.1, 2.2
Device attachment: 1.5″ male BSP (1″ cotter pin)
Tank connection: Flange as required
Sensor: with/without SMW 100

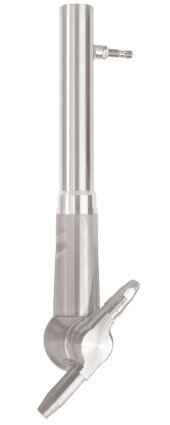

Vericlean rotation monitor

vericlean installation lance as accessory for industrial cleaning systems
Materials: Stainless steel 316L (1.4404), PTFE
Certificates: 3.1, 2.2
Device attachment: 3/4″ male BSP
Tank connection: Flange as required
Sensor type: IFM MFT200
Monitoring: The rotation speed of the cleaning machine is permanently displayed.

SMW 100 Fluid sensor

smw 100 fluid monitoring as accessory for industrial cleaning systems
Materials: 1.4305, PEEK
Connection type: Welded socket
Function: Sensor surge is displayed every 20 seconds.

Maintenance packages & Toolkit

Maintenance packages & toolkit for industrial cleaning systems
Tornado 2 C.PTFE (ATEX & FDA) 4660-4050-888
Tornado 2 PTFE (FDA) 4660-4051-888
Toolkit: 4660-4031-888

The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 17.10.2022-71427321893-1888948-71042)
