Tempest orbital cleaner

Extremely powerful, radially and axially rotating jet cleaner with 4 nozzles

fluid powered 360° low pressure orbital cleaner
extremely strong jet strength and high flow rate
FDA compliant & EX certified
acid, alkali and temperature resistant
compact dimensions
self-cleaning, hygienic, low-wear
validatable cleaning
Function monitoring by Vericlean or SMW 100

Technical Data

Technical Data	Value
Max. cleaning diameter:	19 meters
Spray pattern:	360° orbital
Pressure range:	4 – 10 bar / 58-145 psi
Flow rate:	200 – 410 lpm (12.0 – 24.6 m³/h)
Insertion opening:	min. Ø 210 mm
Preferred mounting position:	arbitrary, preferably vertical
Weight:	approx. 3.9 KG
Materials:	Stainless Steel 316L 316L (1.4404), C.PTFE, PTFE, C.PEEK
Pipe connection:	1.5″ female thread BSP (NPT)
Optional Pipe Connections:	1.5″ cotter pin, DN40 cotter pin, DN50 cotter pin, 1.5″ Clamp
Nozzle characteristics:	4 x 7.0 mm nozzles, 4 x 8 mm nozzles, 4 x 9 mm nozzles
Certificates:	3.1, 2.2, ATEX, FDA Regulation (EC) No 1935/2004
Max. operating temperature:	95°C (203°F)
Max. ambient temperature:	140°C (284°F), 30 Min.
Operating recommendation:	It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage.

Optimal Operation

The pressure range for operating the Tempest is 4 – 10 bar at the cleaning machine.

With a flow rate of 200 – 410 liters/minute, a cleaning diameter of 12 – 19 meters is achieved.

The Tempest is a powerful target jet cleaner with an orbital 360° spray pattern. The Tempest is driven by the cleaning medium at a pressure of 4 to 8 bar. Turbine-driven, a radial and axial rotation of the nozzle head is generated. This creates aligned jets of liquid through four long nozzles with a strong impact effect up to a diameter of 19 metres. By circulating jets of liquid, a completing spray pattern with high coverage and full coverage is thus produced within 5 to 9.5 minutes.

Thanks to optimal flow control, a smooth-running mechanism without ball bearings and a hygienic sealing concept, the energy used on the unit is transformed into a powerful cleaning effect. The orbital cleaning behaviour enables the best possible use of the cleaning liquid or chemical additives. For use in hygiene-sensitive areas, the unit keeps itself permanently clean with a self-cleaning nozzle and empties itself automatically after use in vertical operation.

The use of the unit always conserves resources and requires minimal wear and maintenance. The Tempest meets the highest hygiene and safety standards and can be used in EX zones and FDA applications at the same time. During a long service life, this unit will always prove to be a reliable partner for your cleaning tasks. Tempest orbital cleaners are available in many connection variants. Optionally, the cleaning process of a Tempest can be permanently and non-invasively monitored by SMW 100 or Vericlean. The Tempest is one of the latest and most effective developments in the cleaning technology market.

Tempest orbital cleaners are available with many connection variants. is very compact and can be installed in any position in vessels or equipment using a 1.5” threaded connection or a choice of cotter pin or clamp mounting. It can also be used on a lance or hanging from a hose. Frequent areas of application for this product are tanks and containers in the brewing, beverage, dairy processing, food, pharmaceutical, chemical and transport industries as well as on ships.

Connection types

Threaded connection

Tempest standard devices are equipped with a 1.5″ cylindrical internal thread BSP (British Standard PIPE according to DIN ISO 228). The device is optionally available with a 1.5″ conical internal thread NPT (National Pipe Taper, American pipe thread for self-sealing connections).

Cotter pin connection

The Tempest orbital cleaner is optionally available with a 1.5″, DN40 or DN50 cotter pin attachment. The cotter pin attachment ensures that the cleaning machine is attached without dead space. cotter pin versions have an approx. 15% higher flow rate.

Clamp connection

The Tempest is optionally available with a 1.5″ clamp connection. A clamp connection ensures the uncomplicated removal of the cleaning machine.

Tempest product selection - Connection types/variants

Tempest with 1.5″ threaded connection

Connection	Nozzles	Type	Product code	Materials	EX	FDA	Article number
1.5″ BSP	4 × 7.0 mm	S	Tempest-AF4x7S-BSP	316L/C-PTFE	✔	✔	4660-4968-117
1.5″ BSP	4 × 7.0 mm	S	Tempest-F4x7S-BSP	316L/PTFE		✔	4660-4968-119
1.5″ NPT	4 × 7.0 mm	S	Tempest-AF4x7S-NPT	316L/C-PTFE	✔	✔	4660-4968-121
1.5″ NPT	4 × 7.0 mm	S	Tempest-F4x7S-NPT	316L/PTFE		✔	4660-4968-123
1.5″ BSP	4 × 7.0 mm	K	Tempest-AF4x7K-BSP	316L/C-PTFE	✔	✔	4660-4968-134
1.5″ NPT	4 × 7.0 mm	K	Tempest-AF4x7K-NPT	316L/C-PTFE	✔	✔	4660-4968-144
1.5″ BSP	4 × 8.0 mm	S	Tempest-AF4x8S-BSP	316L/C-PTFE	✔	✔	4660-4968-118
1.5″ BSP	4 × 8.0 mm	S	Tempest-F4x8S-BSP	316L/PTFE		✔	4660-4968-120
1.5″ NPT	4 × 8.0 mm	S	Tempest-AF4x8S-NPT	316L/C-PTFE	✔	✔	4660-4968-122
1.5″ NPT	4 × 8.0 mm	S	Tempest-F4x8S-NPT	316L/PTFE		✔	4660-4968-124
1.5″ BSP	4 × 8.0 mm	K	Tempest-AF4x8K-BSP	316L/C-PTFE	✔	✔	4660-4968-135
1.5″ NPT	4 × 8.0 mm	K	Tempest-AF4x8K-NPT	316L/C-PTFE	✔	✔	4660-4968-139

Tempest with 1.5″ cotter pin/PIN FIX connection

Connection	Nozzles	Type	Product code	Materials	EX	FDA	Article number
1.5″ cotter pin/PIN FIX	4 × 7.0 mm	S	Tempest-AF4x7S-150PF	316L/C-PTFE	✔	✔	4660-4968-125
1.5″ cotter pin/PIN FIX	4 × 7.0 mm	S	Tempest-F4x7S-150PF	316L/PTFE		✔	4660-4968-127
1.5″ cotter pin/PIN FIX	4 × 8.0 mm	S	Tempest-AF4x8S-150PF	316L/C-PTFE	✔	✔	4660-4968-126
1.5″ cotter pin/PIN FIX	4 × 8.0 mm	S	Tempest-F4x8S-150PF	316L/PTFE		✔	4660-4968-128

Cotter pin/PIN FIX versions have approx. 15% higher flow rates than the threaded versions.

S: version with self-cleaning nozzle.

K: version with short nozzle.

Standard external surface: Ra ≤ 0.8 µm.

All versions are FDA compliant. The EX/ATEX version is only available with C-PTFE. 3.1 certificate for all versions.

Tempest units with C-PTFE as bearing material have a longer service life.

Accessories

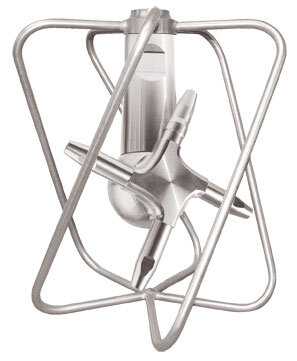

Protective cage (fixed)

Materials:	Stainless steel 1.4404 (316L), PTFE
Certificates:	3.1, 2.2
Device attachment:	1.5″ male BSP
Supply:	Welding connection for 41 mm pipe or 1.5″ male BSP

Weld nipple

Materials:	Stainless steel 1.4404 (316L)
Certificates:	3.1, 2.2
Device attachment:	1.5″ male BSP
Supply:	Welding end

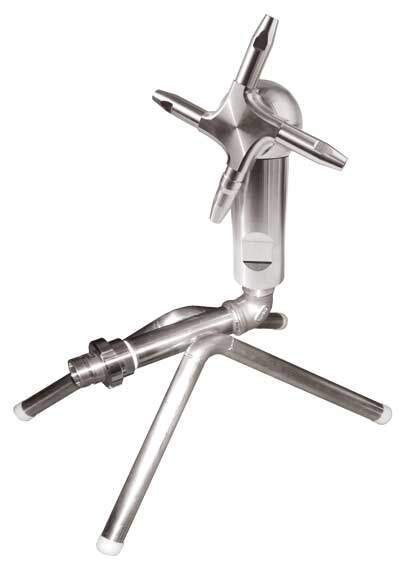

Stand

Materials:	Stainless steel 1.4404 (316L), PTFE
Certificates:	3.1, 2.2
Device attachment:	1.5″ male BSP
Supply:	as required

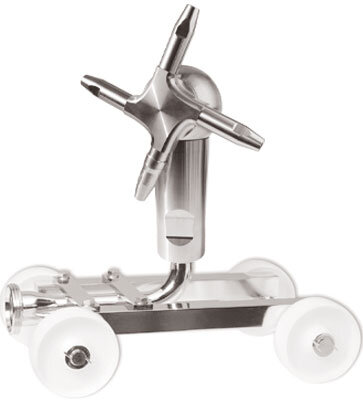

Tank cleaning wagon

Materials:	Stainless steel 316L (1.4404), PP (PTFE)
Certificates:	FDA, 3.1, 2.2
Device attachment:	1.5″ male BSP
Supply:	DN50 Thread connection DIN 11851

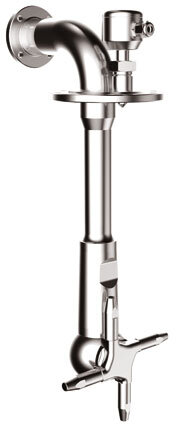

Installation lance

Materials:	Stainless steel 1.4404 (316L), EPDM, FKM
Certificates:	3.1, 2.2
Device attachment:	1.5″ male BSP (1″ cotter pin)
Tank connection:	Flange as required
Sensor:	with/without SMW 100

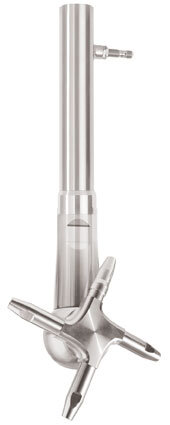

Vericlean rotation monitor

Materials:	Stainless steel 316L (1.4404), PTFE
Certificates:	3.1, 2.2
Device attachment:	3/4″ male BSP
Tank connection:	Flange as required
Sensor type:	IFM MFT200
Monitoring:	The rotation speed of the cleaning machine is permanently displayed.

SMW 100 Fluid sensor

smw 100 fluid monitoring as accessory for industrial cleaning systems

Materials:	1.4305, PEEK
Connection type:	Welded socket
Function:	Sensor surge is displayed every 20 seconds.

Maintenance packages & Toolkit

Tempest C.PTFE (ATEX & FDA)	4660-4050-888
Tempest PTFE (FDA)	4660-4051-888
Toolkit:	4660-4031-888
