Typhoon orbital cleaner

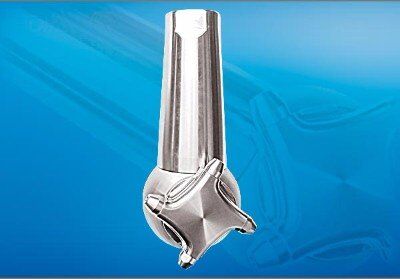

GEA Breconcherry Typhoon orbital cleaner (extremely powerful, radial and axial rotating target cleaner with 4 nozzles)

Extremely powerful, radially and axially rotating jet cleaner with 4 nozzles

  • liquid driven 360° low pressure orbital cleaner
  • strong radiation with medium consumption values
  • FDA compliant & EX certified
  • acid, alkali and temperature resistant
  • compact dimensions
  • self-cleaning, hygienic, low-wear
  • validatable cleaning
  • function monitoring by Vericlean or SMW 100

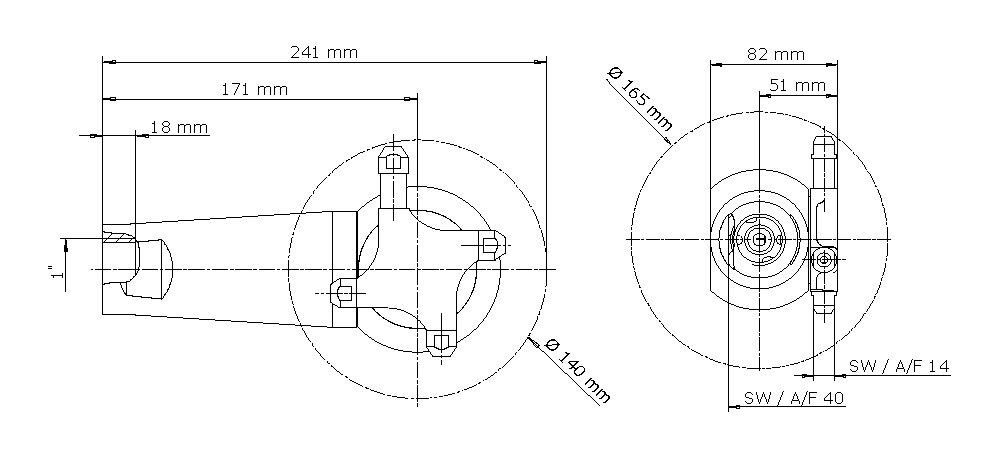

Technical Data

Technical Data Value
Max. cleaning diameter: 17 meters
Spray pattern: 360° orbital
Pressure range: 4 – 10 bar / 58-145 psi
Flow rate: 48 – 175 LPM (2.9 – 10.5 m³/h)
Insertion opening: min. Ø 130 mm
Preferred mounting position: arbitrary, preferably vertical
Weight: approx. 2.0 KG
Materials: Stainless Steel 316L 316L (1.4404), C.PTFE, PTFE, C.PEEK
Pipe connection: 1″ female thread BSP (NPT)
Optional Pipe Connections: 3/4″ or 1.5″ female thread BSP (NPT), 1″, 1.5″, DN40 cotter pin connection or 1.5″ Clamp connection
Nozzle characteristics: 4 x 3.0 mm nozzles, 4 x 4.5 mm nozzles, 4 x 6.0 mm nozzles
Certificates: 3.1, 2.2, ATEX, FDA Regulation (EC) No 1935/2004
Max. operating temperature: 95°C (203°F)
Max. ambient temperature: 140°C (284°F), 30 Min.
Operating recommendation: It is recommended to install a filter/strainer (500 μm) in the CIP supply line to the tank cleaner to protect it from particle clogging or damage.

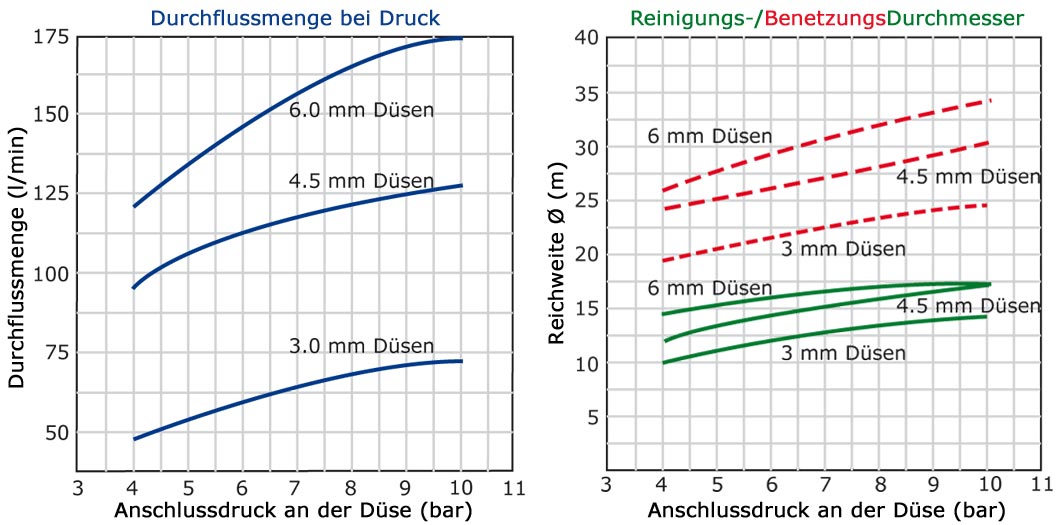

Typhoon Orbital Cleaner Operational Values

Optimal Operation

The pressure range for operating a Typhoon is 4 – 10 bar at the cleaning machine.
With a flow rate of 48 – 175 liters/minute, a cleaning diameter of 10 – 17 meters is achieved.

The Typhoon orbital cleaner is a powerful jet cleaner with a 360° orbital spray pattern. The Typhoon is driven by the cleaning medium at a pressure of 4 to 8 bar. A radial and axial rotation of the nozzle head is generated by turbine drives. This creates liquid jets aligned by four nozzles with a strong impact effect up to a diameter of 17 meters. With liquid jets running around, a complete spray pattern with full coverage is achieved within 3.5 to 6 minutes.

The use of the device is always resource-saving and takes place with the lowest wear and tear and maintenance costs. The Typhoon meets the highest hygiene and safety standards and can be used in EX zones and FDA applications at the same time. During a long service life, this device will always prove to be a reliable partner for your cleaning tasks. Optionally, the cleaning process of a Typhoon can be permanently and non-invasively monitored by SMW 100 or Vericlean. The Typhoon orbital cleaner is one of the latest and most effective developments in the cleaning technology market.

Thanks to optimal flow control, a smooth-running mechanism without ball bearings and a hygienic sealing concept, the energy used in the device unfolds in a strong cleaning effect. The orbital cleaning behavior enables the best possible use of the cleaning liquid or chemical additives. For use in hygiene-sensitive areas, the device keeps itself permanently clean with a self-cleaning nozzle and empties itself automatically after use in vertical operation.

Typhoon orbital cleaners are available in many connection variants. The Typhoon is very compact and can be installed in any position in vessels or equipment using a 1” threaded connection or a choice of splint pin or clamp connection. It can also be used on a lance or hanging from a hose. Common uses for this product include tanks and vessels in the brewing, beverage, dairy, food, pharmaceutical, chemical and transportation industries.

GEA Breconcherry, Gewindebefestigung

Threaded attachment

Typhoon standard devices are equipped with a 1″ cylindrical internal thread BSP (British Standard PIPE according to DIN ISO 228). Alternatively the device is available as 1.5″ BSP or reduced to 3/4″ BSP. Additionally the device is available with a 1″, 1.5″ or a reduced 3/3″ conical internal thread NPT (National Pipe Taper, American pipe thread for self-sealing connections).

GEA Breconcherry, Splintbefestigung

Cotter pin attachment

The Typhoon is optionally available with a 1″, 1.5″ or DN40 cotter pin attachment. The cotter pin attachment ensures that the cleaning machine is attached without creating some dead space. cotter pin versions have an approx. 15% higher flow rate.

GEA Breconcherry, Klammerbefestigung

Clamp attachment

The Typhoon is optionally available with a 1.5″ clamp attachment. A clamp attachment ensures that the cleaning machine can be easily removed.

Typhoon with 1″ threaded connection

Connection Nozzles Type Product code Materials EX FDA Article number
1″ BSP 4 × 4.5 mm S Typhoon-AF4x4S-BSP 316L/C-PTFE ✔ ✔ 4660-4969-117
1″ BSP 4 × 4.5 mm S Typhoon-F4x4S-BSP 316L/PTFE ✔ 4660-4969-119
1″ NPT 4 × 4.5 mm S Typhoon-AF4x4S-NPT 316L/C-PTFE ✔ ✔ 4660-4969-121
1″ NPT 4 × 4.5 mm S Typhoon-F4x4S-NPT 316L/PTFE ✔ 4660-4969-123
1″ BSP 4 × 4.5 mm NSC Typhoon-AF4x4-BSP 316L/C-PTFE ✔ ✔ 4660-4969-116
1″ NPT 4 × 4.5 mm NSC Typhoon-AF4x4-NPT 316L/C-PTFE ✔ ✔ 4660-4969-224
1″ BSP 4 × 4.5 mm LP Typhoon-AF4x4LP-BSP 316L/C-PTFE ✔ ✔ 4660-4995-011
1″ BSP 4 × 6.0 mm S Typhoon-AF4x6S-BSP 316L/C-PTFE ✔ ✔ 4660-4969-118
1″ BSP 4 × 6.0 mm S Typhoon-F4x6S-BSP 316L/PTFE ✔ 4660-4969-120
1″ NPT 4 × 6.0 mm S Typhoon-AF4x6S-NPT 316L/C-PTFE ✔ ✔ 4660-4969-122
1″ NPT 4 × 6.0 mm S Typhoon-F4x6S-NPT 316L/PTFE ✔ 4660-4969-124
1″ BSP 4 × 6.0 mm NSC Typhoon-AF4x6-BSP 316L/C-PTFE ✔ ✔ 4660-4969-129

Typhoon with 1″ cotter pin/PIN FIX connection

Connection Nozzles Type Product code Materials EX FDA Article number
1″ cotter pin/PIN FIX 4 × 4.5 mm S Typhoon-AF4x4S-PF 316L/C-PTFE ✔ ✔ 4660-4970-413
1″ cotter pin/PIN FIX 4 × 4.5 mm S Typhoon-F4x4S-PF 316L/PTFE ✔ 4660-4970-415
1″ cotter pin/PIN FIX 4 × 6.0 mm S Typhoon-AF4x6S-PF 316L/C-PTFE ✔ ✔ 4660-4970-414
1″ cotter pin/PIN FIX 4 × 6.0 mm S Typhoon-F4x6S-PF 316L/PTFE ✔ 4660-4970-416

Discontinued device types or available on request only

Connection Nozzles Type Product code Materials EX FDA Article number
1″ BSP 4 × 3.0 mm S Typhoon-AF4x3S-BSP 316L/C-PTFE ✔ ✔ 4660-4970-418
1″ BSP 4 × 3.0 mm S Typhoon-F4x3S-BSP 316L/PTFE ✔ 4660-4970-419

Cotter pin/PIN FIX versions have approx. 15% higher flow rates than the threaded versions.

S: standard version with extended self-cleaning nozzle.

LP: low-profile version with recessed nozzles for a smaller installation opening.

NSC: version without extended self-cleaning nozzle.

Standard external surface: Ra ≤ 0.8 µm. Optional: Ra ≤ 0.4 µm, electropolished – on request.

All versions are FDA compliant. The EX/ATEX version is only available with C-PTFE. 3.1 certificate for all versions.

Typhoon units with C-PTFE as bearing material have a longer service life.

Protective cage

protective cage as accessory for industrial cleaning systems
Materials: Stainless steel 1.4404 (316L)
Certificates: 3.2, 2.2
Device attachment: 1″ male BSP

Weld nipple

weld nipple as accessory for industrial cleaning systems
Materials: Stainless steel 1.4404 (316L)
Certificates: 3.1, 2.2
Device attachment: 1″ male BSP
Supply: Welding end

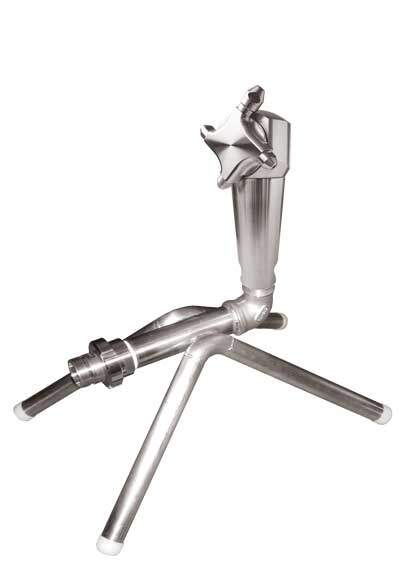

Stand

stand as accessory for industrial cleaning systems
Materials: Stainless steel 1.4404 (316L), PTFE
Certificates: 3.1, 2.2
Device attachment: 3/4″ male BSP
Supply: as required

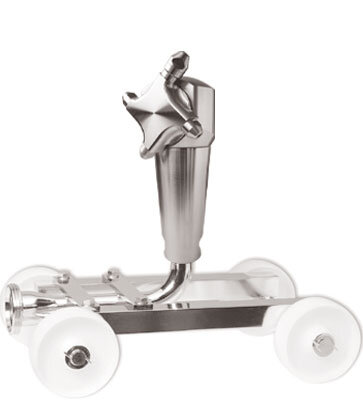

Tank cleaning wagon

tank cleaning wagon as accessory for industrial cleaning systems
Materials: Stainless steel 316L (1.4404), PP (PTFE)
Certificates: FDA, 3.1, 2.2
Device attachment: 3/4″ male BSP
Supply: DN50 Thread connection DIN 11851

Installation lance

Installation lance as accessory for industrial cleaning systems
Materials: Stainless steel 1.4404 (316L), EPDM, FKM
Certificates: 3.1, 2.2
Device attachment: 3/4″ male BSP (1″ cotter pin)
Tank connection: Flange as required
Sensor: with/without SMW 100

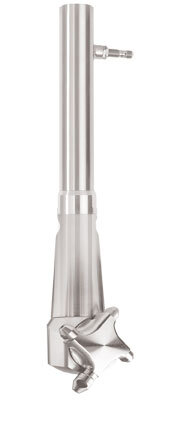

Vericlean rotation monitor

vericlean installation lance as accessory for industrial cleaning systems
Materials: Stainless steel 316L (1.4404), PTFE
Certificates: 3.1, 2.2
Device attachment: 3/4″ male BSP
Tank connection: Flange as required
Sensor type: IFM MFT200
Monitoring: The rotation speed of the cleaning machine is permanently displayed.

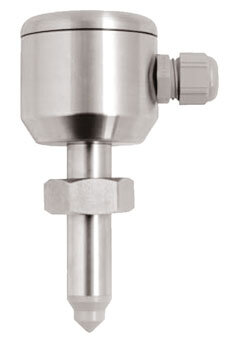

SMW 100 Fluid sensor

smw 100 fluid monitoring as accessory for industrial cleaning systems
Materials: 1.4305, PEEK
Connection type: Welded socket
Function: Sensor surge is displayed every 20 seconds.

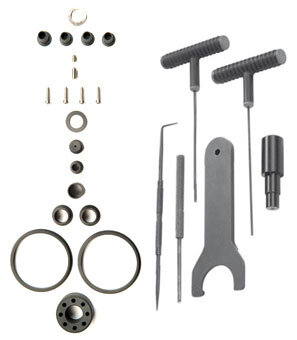

Maintenance packages & Toolkit

Maintenance packages & toolkit for industrial cleaning systems
Typhoon C.PTFE (ATEX & FDA) 4660-4050-888
Typhoon PTFE (FDA) 4660-4051-888
Toolkit: 4660-4031-888

The data, technical data and information presented do not release the user from the obligation to check the suitability of the products supplied for the intended application. All information is without guarantee. (Status of: 13.10.2022-71427321893-1888948-71042)
