Rotiko ball bearing Nozzle

Rotiko - kugellagert (tropfenbildend, schnelle Rotation) Rotiko - ball bearing nozzle (drop-forming, fast rotating)

Ball bearing nozzle with fast rotation,
economic cleaning

  • ball bearing
  • fast rotation, effective cleaning
  • FDA-conform
  • high-speed, fast distribution
  • e-polished Surfaces Ra ≤ 0.5 μm
  • energy saving alternative for static sprayballs
  • for hygiene sensible application

Technical Data

Technical Data Value
Max. cleaning diameter: 2.4 Meter
Spray pattern: 360° and 180° up-, downwards
Pressure range: 1.5 – 4 bar
Flow rate: 16.8 – 76.5 LPM (1.01 – 4.59 m³/h)
Insertion opening: DIN min. Ø 38 mm, ASME min. Ø 50 mm, SMS min. Ø 70 mm
Mounting position: vertical downwards
Weight: approx. 0.15 KG
Materials: Stainless Steel 316L (1.4435) Body+Ball, 316L (1.4435) Clamp,
1.4404, ball bearing (optional: 2.4610), Orifice: PTFE
Pipe connection: Clamp connection DIN (23X1.5), ASME (25.4×1.65), SMS (25×1.2)
Nozzle characteristics: Ball with slots
Certificates: 3.1, 2.2, FDA, FDA Regulation (EC) No 1935/2004
Max. operating temperature: 65°C (149°F)
Max. ambient temperature: 140°C (284°F), 30 Min.
Operation recommendation: It is recommended to install a filter/screen (500 μm) in the CIP inlet line to the tank cleaner to protect it from clogging with particles or damage.

Flowrates at pressure (m³/h)
PTFE orifice 1.5 bar 2.0 bar 2.5 bar 3.0 bar 3.5 bar 4.0 bar
DIN Ø 4 mm 1.01 1.17 1.30 1.43 1.54 1.65
DIN Ø 6 mm 1.74 2.01 2.25 2.46 2.66 2.84
DIN Ø 8 mm 2.70 3.12 3.49 3.82 4.12 4.41
ASME Ø 4 mm 1.09 1.26 1.41 1.54 1.67 1.78
ASME Ø 6 mm 1.82 2.10 2.35 2.57 2.78 2.97
ASME Ø 8 mm 2.82 3.26 3.64 3.99 4.31 4.61
SMS Ø 4 mm 1.08 1.25 1.39 1.53 1.65 1.76
SMS Ø 6 mm 1.81 2.09 2.34 2.56 2.76 2.96
SMS Ø 8 mm 2.81 3.24 3.63 3.97 4.29 4.59

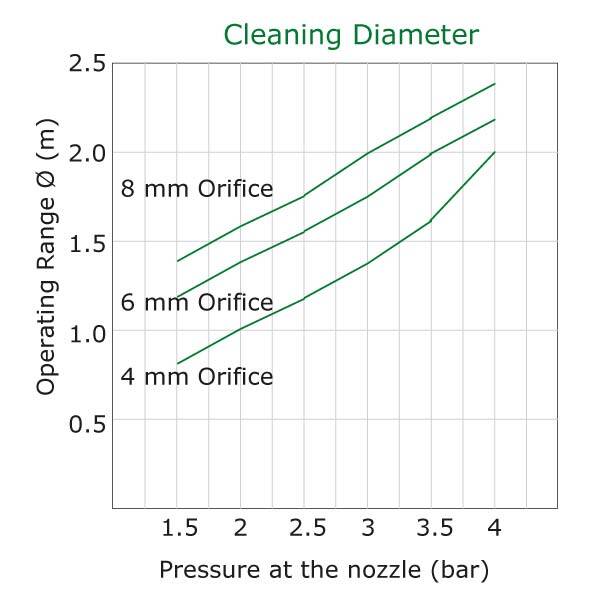

rotiko cleaning nozzle operating values

With a flowrate 1.01 – 4.59 m³/h a cleaning diameter of 0.75 – 2.4 meters is achieved.

The ROTIKO is a fast rotating spray head driven by the cleaning medium with droplet forming liquid distribution exiting through slots. With lower liquid consumption and higher spraying effectiveness, the Rotiko is an energy-saving alternative to static spray balls.
When using the new ROTIKO, the rotation of the spray head applies the cleaning liquid to the whole or only the upper area of a container.

Mode of operation: The double-bearing spray head is rotated by the flow of the cleaning agent. The tank surface is completely wetted with detergent through circumferential slots. The spray head is self-cleaning. The cleaning of the feed pipe is carried out through the slot between the connection sleeve and the pipe and a hole directed towards the connection.

The specially arranged spray slots allow for large droplet formation and an even spray pattern. Consumption of water and detergent is reduced by up to 50% compared to static spray balls.

A 6 mm PTFE orifice plate is installed in the ROTIKO ex works. Additional PTFE orifices with 4 and 8 mm bore are always supplied. This allows easy adjustment of the liquid quantities.

Installation Lance

Rotiko Installationslanze

Materials: Stainless Steel 1.4404 (316L), EPDM, FKM
Certificates: 3.1, 2.2
Device connection: Clamp connection
Tank connection: Flange as required
Sensor: without SMW 100
