Orbital Cleaners 360°
Tornado 2
Extremely powerful targeted-jet cleaner with 2 nozzles, for vessels up to 27 metres.
Zurück zu Orbital Cleaners 360°
Enquire about Tornado 2

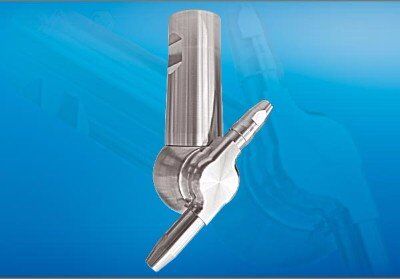

The Tornado 2 is an extremely powerful, radially and axially rotating targeted-jet cleaner with two large nozzles for particularly large-volume vessels.
Despite having only two nozzles, its high flow rate achieves a cleaning diameter of up to 27 metres.
Vorteile
- Up to 27 m cleaning diameter with just 2 nozzles
- High flow rate in a compact design
- Several connection options (thread, clevis pin, clamp)
- Extensive accessory range available
Technische Daten
Tornado 2
| Cleaning diameter | bis 27 m |
|---|---|
| Pressure range | 4–10 bar |
| Flow rate | 243–378 LPM (14,6–22,7 m³/h) |
| Weight | ca. 3,1 kg |
| Standard connection | 1,5″ Innengewinde BSP |
| Nozzle fitting | 2 × 11,0 mm |
| Materials | Edelstahl 316L, C.PTFE, PTFE |
| Certificates | 3.1, 2.2, ATEX, FDA, EU 1935/2004 |
Einsatzbereiche
Typische Anwendungen
Large-volume tanks and silos
Brewing, beverage and food industry
Pharmaceutical and chemical industry
Transport industry
