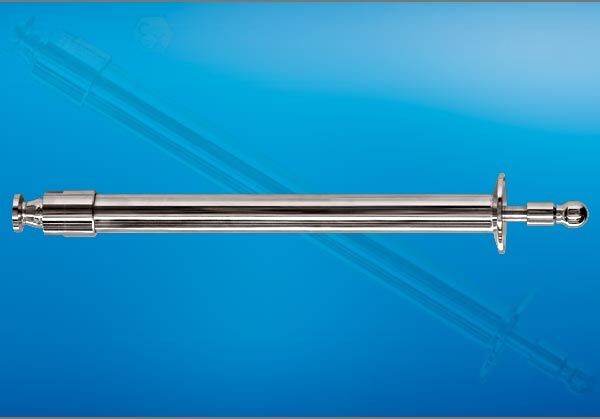

SR1000 Retractor
Modular retractor range in three sizes (Mini/Micro/Nano) for a wide variety of installation situations.
Zurück zu Retractable Nozzles
Enquire about SR1000 Retractor
The SR1000 is available in three sizes – Mini, Micro and Nano – covering cleaning diameters from 1 to 4 m, from the smallest pipe connections (Nano, from Ø 20 mm) to larger process vessels (Mini, from Ø 45 mm).
Stroke length is configurable between 50 and 1,000 mm depending on size, with a selectable 90°, 180°, 270° or 360° upward/downward spray pattern – making it one of Breconcherry's most flexible retractor solutions.
Vorteile
- Three sizes for practically any installation situation
- Freely selectable spray pattern from 90° to 360°
- Most compact Nano version from Ø 20 mm
- Modular, combinable with various spinner nozzles
Technische Daten
SR1000 Retractor
| Spray pattern | 90°, 180°, 270°, 360° auf-/abwärts |
|---|---|
| Pressure range | 2–4 bar |
| Flow rate | 48–90 LPM (2,9–5,4 m³/h) |
| Stroke | 50–1.000 mm (geräteabhängig) |
| Installation position | beliebig |
| Internal thread | Mini 3/4″, Micro 3/8″, Nano 1/8″ |
| Installation opening | Mini min. Ø 45 mm, Micro min. Ø 30 mm, Nano min. Ø 20 mm |
| Cleaning diameter | Mini 4 m, Micro 2 m, Nano 1 m |
| Materials | Edelstahl 316L (1.4404), 316 (1.4401), Hastelloy (2.4610) |
| Nozzle fitting | Mini-, Micro-, Nanospinner, weitere auf Anfrage |
| Max. operating temperature | 90 °C |
| Max. ambient temperature | 110 °C, 30 Min. |
| Certificates | 3.1, 2.2, (ATEX, FDA) |
Einsatzbereiche
Typische Anwendungen
Pipework and small connecting stubs (Nano)
Medium process vessels (Micro/Mini)
Automated CIP systems with tight installation space
