Drip-Forming Rotary Nozzles

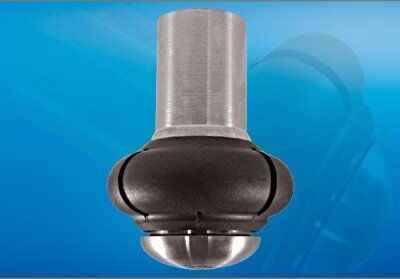

Torus 100
Larger Torus version for vessels up to 4.8 metres in diameter.
Zurück zu Drip-Forming Rotary Nozzles
Enquire about Torus 100
The Torus 100 applies the Torus series' proven plain-bearing rotor principle to larger vessels. It is suited to low-pressure applications with moderate water volumes and can be installed in any position.
The ultra-hygienic design, with just one moving part, withstands compressed air and hot-steam sterilisation.
Vorteile
- Greatest reach in the Torus range
- Just one moving part
- Resistant to steam sterilisation
- Any installation position possible
Technische Daten
Torus 100
| Cleaning diameter | bis 4,8 m |
|---|---|
| Pressure range | 1–6 bar |
| Flow rate | 50–118 LPM (3,0–7,1 m³/h) |
| Materials | Edelstahl 316L, C.PTFE, PTFE, Hastelloy C22 |
| Standard connection | 3/4″ Innengewinde BSP |
| Max. operating temperature | 65 °C |
| Certificates | 3.1, 2.2, ATEX, FDA, EU 1935/2004 |
Einsatzbereiche
Typische Anwendungen
Large vessels in the pharmaceutical and chemical industry
Impingement rinsing and continuous cleaning
Can be installed inside pipework
Highly sensitive applications
