Spray Balls in Special Materials

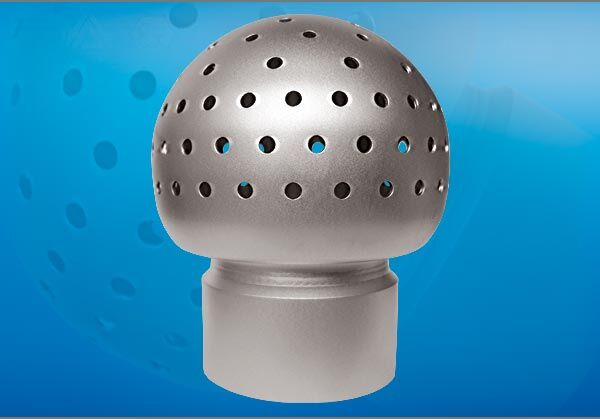

Spray ball in high-alloy special materials, for aggressive media.
Zurück zu Static Spray Balls
Enquire about Spray Balls in Special Materials
For particularly aggressive cleaning or process media, Breconcherry offers the spray ball range in special materials such as Alloy 59 or Hastelloy C22 – electropolished for maximum resistance and cleanability.
The more compact design, with cleaning diameters up to 3 m, is suited to smaller and medium vessels with elevated material resistance requirements.
Vorteile
- High-alloy special materials for aggressive media
- Electropolished surface for maximum cleanability
- Optional Hastelloy C22
- Compact design
Technische Daten
Spray Balls in Special Materials
| Max. cleaning diameter | 3 m |
|---|---|
| Spray pattern | 360° |
| Pressure range | 1,0–2,5 bar |
| Flow rate | 40–290 LPM (2,4–17,4 m³/h) |
| Installation opening | 30–60 mm |
| Installation position | beliebig |
| Surface finish | elektropoliert, außen Ra ≤ 0,5 μm / matt (DIN ISO) |
| Materials | Edelstahl 316L (1.4435), Alloy 59 (2.4605), Hastelloy C22 (2.4602), 1.4539 |
| Certificates | 3.1 DIN EN 10204, 2.2 |
| Recommended operating pressure | 1,0–2,5 bar Ü am Einlass |
| Guideline flow rate | 30–50 l/min pro Meter Tankumfang |
Einsatzbereiche
Typische Anwendungen
Chemical plants with aggressive media
Vessels requiring elevated corrosion resistance
Special applications in the process industry
