Jet Cleaners 180°/360°
Jumbo 6
Liquid-driven 360° low-pressure jet cleaner with four nozzles, for large cleaning diameters.
Zurück zu Jet Cleaners 180°/360°
Enquire about Jumbo 6

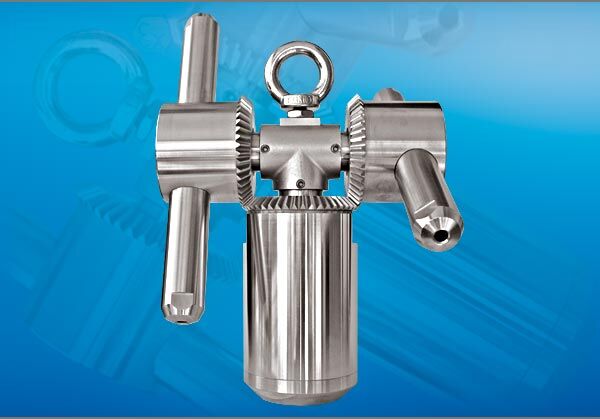

The Jumbo 6 is a liquid-driven, 360° low-pressure jet cleaner with four extended nozzles that achieves cleaning diameters of up to 11 m even at low pressure – ideal for the fast, coarse cleaning of large vessels.
Thanks to its robust stainless steel/PTFE construction and a choice of 1/4″ or 3/8″ nozzle fitting, it can be flexibly matched to the required flow rate.
Vorteile
- Very large cleaning diameter up to 11 m
- Low-pressure operation saves energy
- No moving parts in the drive
- Choice of 1/4″ or 3/8″ nozzle fitting
Technische Daten
Jumbo 6
| Max. cleaning diameter | 11 m |
|---|---|
| Spray pattern | 360° |
| Pressure range | 4–14 bar |
| Flow rate (1/4″) | 180–320 LPM (10,8–19,2 m³/h) |
| Flow rate (3/8″) | 310–580 LPM (18,6–34,8 m³/h) |
| Installation opening | min. Ø 280 mm |
| Installation position | vertikal nach unten |
| Weight | ca. 5,6 kg |
| Materials | Edelstahl 316L (1.4404), PTFE |
| Standard connection | 1,5″ Innengewinde BSPT |
| Nozzle fitting | 4 × 1/4″ oder 4 × 3/8″ Düsen |
| Certificates | 3.1, 2.2, weitere auf Anfrage |
| Max. operating temperature | 95 °C |
| Max. ambient temperature | 140 °C, 30 Min. |
Einsatzbereiche
Typische Anwendungen
Pre-rinse and coarse cleaning of large tanks
Silos and storage vessels
Supplementary nozzles in multi-stage CIP systems
