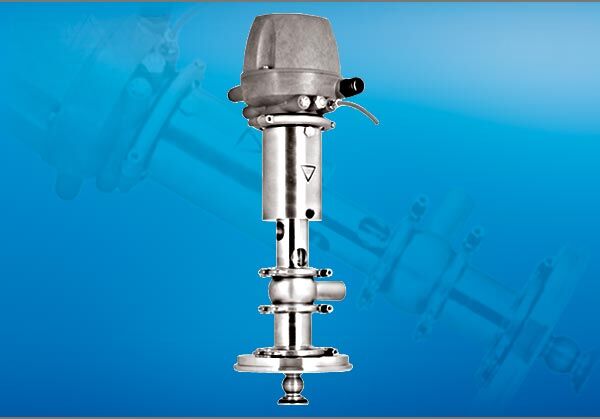

IS25 Retractor
Compact retractor with a fixed spray ball, for smaller vessels and pipework.
Zurück zu Retractable Nozzles
Enquire about IS25 Retractor
The IS25 retractor is the most compact model in the retractor range and is fitted with a fixed, perforated spray ball. With a stroke of just 56 mm, it suits installation situations with limited space.
The vacuum-resistant design (down to 0.1 bar abs.) and its high temperature reserves under steam and hot-air exposure make it a robust choice for demanding pharmaceutical and food processes.
Vorteile
- Very compact design with a short stroke
- Vacuum-resistant down to 0.1 bar abs.
- High temperature reserves under steam/hot air
- Suitable for smaller vessels and pipework
Technische Daten
IS25 Retractor
| Cleaning diameter | bis 1,6 m |
|---|---|
| Spray pattern | 192°–360° |
| Pressure range | 1,8–2,5 bar |
| Flow rate | 48–90 LPM (2,9–5,4 m³/h) |
| Stroke | 56 mm |
| Installation position | beliebig |
| Weight | ca. 6,0 kg |
| Materials (produktberührt) | Edelstahl 316L (1.4435), EPDM, FKM, FFKM |
| Materials (nicht produktberührt) | Edelstahl 316 (1.4301), NBR |
| Max. operating temperature | 98 °C |
| Max. steam exposure | 140 °C, 30 Min. |
| Max. hot air exposure | 190 °C, 30 Min. |
| Vacuum resistance | bis 0,1 bar abs. |
| Certificates | 3.1, 2.2, ATEX (0G/20D), FDA möglich |
Einsatzbereiche
Typische Anwendungen
Smaller process vessels
Pipework subject to vacuum
Pharmaceutical and food production
