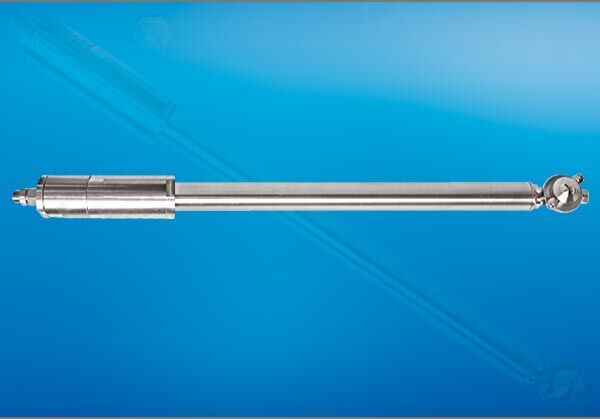

HL-H – High-Pressure Lance with Water Motor
Hydraulically driven high-pressure lance with no external power source.
Zurück zu High-Pressure Lances 180–250 bar
Enquire about HL-H – High-Pressure Lance with Water Motor
The HL-H uses a water motor driven directly by the cleaning medium – no separate electrical or compressed-air connection is required. This makes it particularly easy to install and equally suitable for ATEX areas.
At an operating pressure of 180 to 200 bar and with adjustable rotation speed, it delivers reliable cleaning performance for vessels up to 2 m in diameter.
Vorteile
- No external power connection required
- Suitable for ATEX zones
- Simple installation directly on the supply line
- Adjustable rotation speed
Technische Daten
HL-H – High-Pressure Lance with Water Motor
| Max. cleaning diameter | 2 m |
|---|---|
| Spray pattern | 360° / 270° orbital |
| Number of nozzles | 2, 3 oder 4 |
| Pressure range | 180–200 bar |
| Flow rate | 30–80 LPM (1,8–4,8 m³/h) |
| Max. operating temperature | 90 °C |
| Installation opening | 38–78 mm (spritzkopfabhängig) |
| Rotation speed | 10–30 U/min, einstellbar |
| Shaft length | 200–4.000 mm (Sonderlängen möglich) |
| Weight | 5–20 kg (schaftlängenabhängig) |
| Materials | Edelstahl 316L, 304, 301, Viton, EPDM/PTFE |
| Liquid connection | 3/8″ AG, optional M22x1,5 AG |
| Certificates | 2.2, CE, ATEX, FDA auf Anfrage |
Einsatzbereiche
Typische Anwendungen
ATEX-rated areas with no power connection
Mobile, self-contained use
Silos and reactors in the chemical industry
