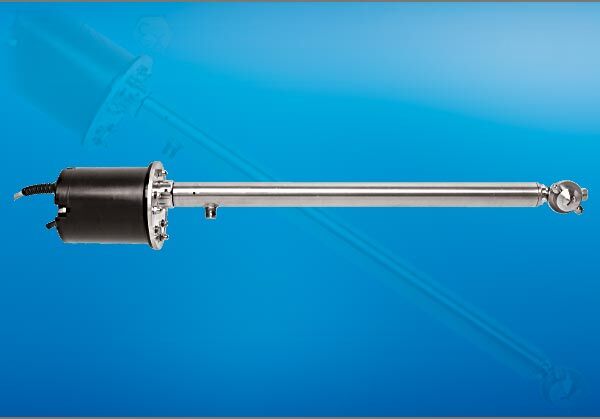

HL-E – High-Pressure Lance with Electric Motor
Electrically driven high-pressure lance with 3D rotation, for vessels up to 2 m diameter.
Zurück zu High-Pressure Lances 180–250 bar
Enquire about HL-E – High-Pressure Lance with Electric Motor
The HL-E is driven by an electric motor and produces a 360°/270° orbital spray pattern with a choice of 2, 3 or 4 nozzles. An operating pressure of up to 250 bar makes it the first choice for stubborn, baked-on soiling.
Shaft lengths from 200 to 4,000 mm (special lengths on request) and a freely selectable installation position allow use in almost any vessel geometry, while the choice of power types eases integration into existing plants.
Vorteile
- Very high pressure range up to 250 bar
- Multiple power types for flexible integration
- Freely selectable installation position and shaft length
- ATEX version available on request
Technische Daten
HL-E – High-Pressure Lance with Electric Motor
| Max. cleaning diameter | 2 m |
|---|---|
| Spray pattern | 360° / 270° orbital |
| Number of nozzles | 2, 3 oder 4 |
| Nozzle types | 0° Punktstrahl, optional 5°/15° Flachstrahl |
| Pressure range | 70–250 bar |
| Flow rate | 30–200 LPM (1,8–12,0 m³/h) |
| Max. operating temperature | 150 °C |
| Installation opening | 38–78 mm (spritzkopfabhängig) |
| Rotation speed | 11 / 17 / 24 / 33 U/min |
| Power type | 230/115/48/24 VAC oder 24 VDC |
| Shaft length | 200–4.000 mm (Sonderlängen möglich) |
| Weight | 5–20 kg (schaftlängenabhängig) |
| Materials | Edelstahl 316L, 304, 301, Viton, EPDM/PTFE |
| Liquid connection | 3/8″ AG, optional M22x1,5 AG |
| Certificates | 2.2, CE, ATEX, FDA auf Anfrage |
Einsatzbereiche
Typische Anwendungen
Reactors with baked-on product residues
Silos in the chemical industry
Tank trucks and tank wagons
