Caskwasher
Compact rotary nozzle for wine cask and vessel cleaning.
Zurück zu Drip-Forming Rotary Nozzles
Enquire about Caskwasher

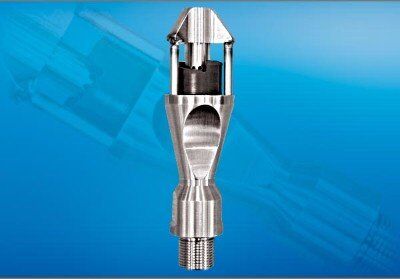

The Caskwasher was specifically developed for cask and vessel cleaning in the wine industry: the vessel to be cleaned is placed onto the unit, or the cleaner is inserted into the vessel.
A rotating disc centrifuge distributes the cleaning medium frictionlessly with high mechanical energy across the entire interior surface, protected by a guard cage against damage.
Vorteile
- Specifically developed for cask and vessel cleaning
- Protected by a guard cage against damage
- Low-maintenance continuous operation
- FDA-compliant, suitable for automation
Technische Daten
Caskwasher
| Cleaning diameter | bis 1,5 m |
|---|---|
| Spray pattern | 180° (360° Abdeckung durch Rotation) |
| Pressure range | 2–4 bar |
| Flow rate | 40–60 LPM (2,4–3,6 m³/h) |
| Materials | Edelstahl 316L, C.PTFE, PTFE, PEEK |
| Standard connection | 3/4″ Außengewinde BSP |
| Certificates | 3.1, 2.2, ATEX, FDA, EU 1935/2004 |
Einsatzbereiche
Typische Anwendungen
Wine cask cleaning
Vessel and cask sanitisation
Beverage industry in general
